Superconducting Magnet Dewars CSM/CVSM Series

Cryogenic Containers for Research

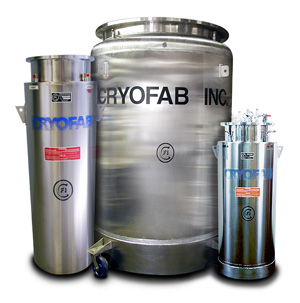

superconducting magnet dewars with shielding options
The superconducting magnet dewars product line was designed specifically to facilitate superconducting magnet research. The same advanced engineering apparent in Cryofab’s other product lines is applied in the design and construction of the magnet dewars. Our superconducting magnet dewars are fabricated entirely of stainless steel and will accommodate coils of all generally available magnets.

Most of Cryofab’s superconducting magnet dewars are based on a design-your-own approach. Versatility in fabrication and design enables Cryofab to cut engineering cost regardless of dimensions, capacity and shielding process requested. This translates into savings of time and money for our customers.

We offer two types of shielding LN2 shielding or vapor shielding. The LN2 is the traditional way to achieve optimum liquid loss results. This is four wall construction with the liquid nitrogen employed as an intermediate heat shield for the helium reservoir. This dewar features all welded construction continuously tested as it is assembled. The model designation for this type of vessel is CSM.

The vapor shielded vessel uses a state of the art insulation system incorporated with welded construction to achieve an efficient yet maintenance free dewar. Liquid helium loss rates are slightly higher with this product but the trade off for lower pricing and less maintenance have made it a popular choice. The model designation for this vessel is CVSM.

Features of Superconducting Magnet Dewars

Configuration options for Superconducting Magnet Dewars

Our superconducting magnet dewars have three main configurations to choose from, the most common being the straight bore in which the inner walls run down to the bottom without intervention.
The second choice would be a belly/tail dewar. This design enables the experiment to have a designated liquid capacity located over the magnet, which is situated in a tail section. Again, all dimensions, neck, belly, liquid capacity, tail section can be fabricated to meet customer requirements.
The third configuration is a reservoir type where the neck is designed to be wide enough to place an experiment into the vessel, yet the reservoir section is wider to accommodate a larger liquid volume.

Superconducting Magnet Dewars Features

  • Fabricated of all stainless steel
  • Accommodates coils of all generally available magnets
  • Diameters from 2″ up to 96″
  • Wide range of depths, maximum 14 feet
  • LN2 or vapor shielding
  • Three main configurations: straight bore, belly & belly/tail
  • One year warranty on the vacuum
  • Many custom options

Select desired shielding type to see PDF specifications for standard sizes:

LN2 Shielded CSM Series|Vapor Shielded CVSM Series

Design the perfect vessel for your research

custom superconducting magnet dewar for laboratory

See below for some of the available options.
Custom Work Is Our Specialty

More Information

GET A QUOTE

Customize It

If you need it we can make it. Contact Us to any of these options to standard CF dewar f ask or to work with our experts to design the perfect container for your needs. Large and small run manufacturing also available.

Call 1.800.426.2186 or fill out our online request form to start designing perfect tank for your application.



Available Options Include

  • Pumping arm for the helium space
  • Level sensors for the the and LN2 section
  • Roller bases for portability
  • Covers, baffled or insulated
  • Feedthroughs
  • Internal or external ferromagnetic shielding
  • Warm bores
